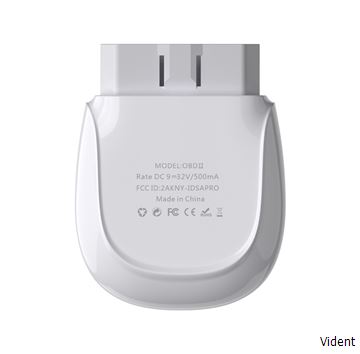

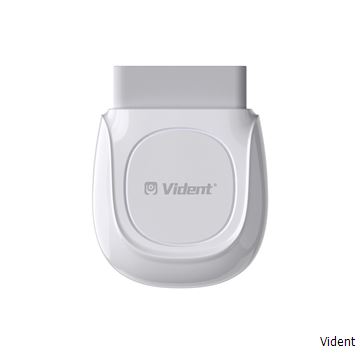

 iSmartDiag500Max Car Diagnostic Tool

The iSmartDiag500Max support selections of VW, BMW & TOYOTA groups vehicle brand, which offers OE level diagnosis for all electronic control systems. It's not only covers basic diagnostic functions like read/erase fault code, live data, active test, but also capable with advanced functions like off-line coding and adaptations. In addition, it provides some commonly required service functions, such as Oil Light Reset, Injector Coding, Electronic Parking Brake Service, Battery Configuration, Steering Angel Sensor Calibration, DPF etc.

  • Supports both Andioid and iOS mobile devices
    Operating Temperature: 0 to 60°C (32 to 140°F)
    Storage Temperature: -20 to 70°C (-4 to 158°F)
    Power Supply: 8 to 18V provided via vehicle

    Supported Protocols: ISO15765(CANBUS 11bit&29bit TP16,TP20,UDS,FIAT CAN,VOLVO CAN), ISO14230(KWP2000),ISO9141-2,J1850VPW,J1850PWM,KWP1281,KWP2089,KW81,KW82,

    ALDL,SCI,DSI,DSII,LUCAS,MELCO,BENIX, ISO7800,SIMENMS_ISO1,SIMENMS_ISO2, CAN FD, DoIP

    Dongle Size: 68.5*51.2*24mm (L*W*H)
  • 1. VCI Dongle

    2. SN Paper

    3. Plastic Case

  • Name Download
    iSmartDiag User Guide.pdf
