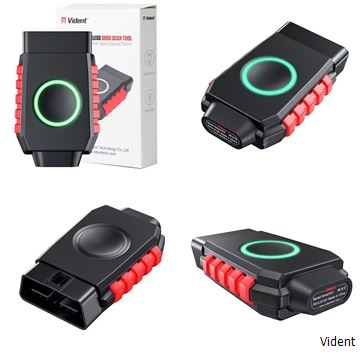

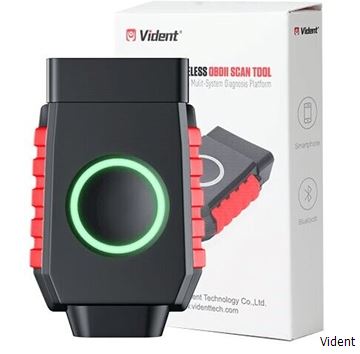

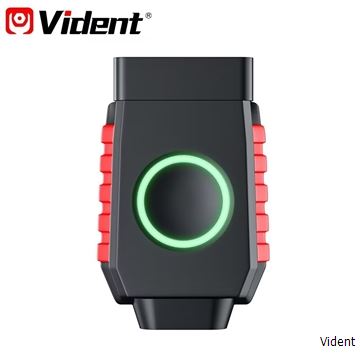

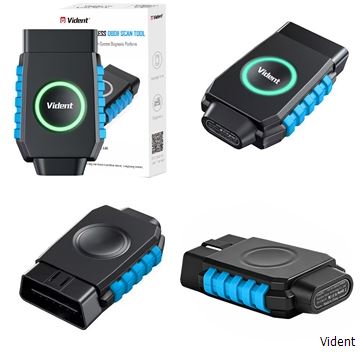

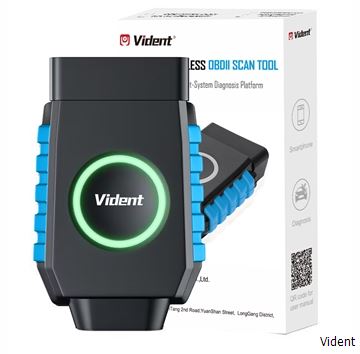

 iSmartDiag510 Pro All System Car Diagnostic Tool

iSmartDiag510 Pro is a newly released bluetooth diagnostic dongle, which can free user from the hassle of cables. It supports iOS and Android operating system, with iSmartDiag510 Pro, user can access to ECU data easily. The iSmartDiag510 Pro supports 28+ special functions like service reset, ABS bleeding, EPB, DPF, Injector Coding, Battery Reset, SAS etc. The iSmartDiag510 Pro is particularly helpful for users who want to regularly check vehicle conditions, and like to keep an eye on real-time performance.
  • Operating Temperature: 0 to 60°C (32 to 140°F)
    Storage Temperature: -20 to 70°C (-4 to 158°F)
    Power Supply: 8 to 18V provided via vehicle

    Supported Protocols: ISO15765(CANBUS 11bit&29bit TP16,TP20,UDS,FIAT CAN,VOLVO CAN), ISO14230(KWP2000),ISO9141-2,J1850VPW,J1850PWM,KWP1281,KWP2089,KW81,KW82,

    ALDL,SCI,DSI,DSII,LUCAS,MELCO,BENIX, ISO7800,SIMENMS_ISO1,SIMENMS_ISO2, CAN FD, DoIP

    Dongle Size: 78*53*21mm (L*W*H)
    Box Size: 135*88*26mm (L*W*H)
    Weight: 96g
    QTY/CTN: 50 Units
    Weight/CTN: 4.8KG
    Carton Size: 461*290*157mm

  • 1. VCI Adapter

    2. Password Paper

    3. Quick User Guide

    4. Packing Box

  • Name Download
    iSmartDiag USER GUIDE.pdf
