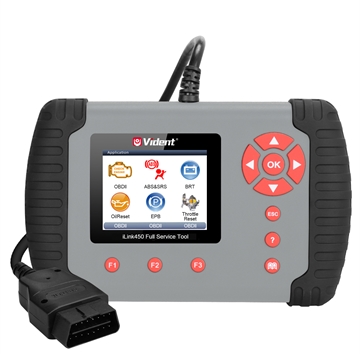

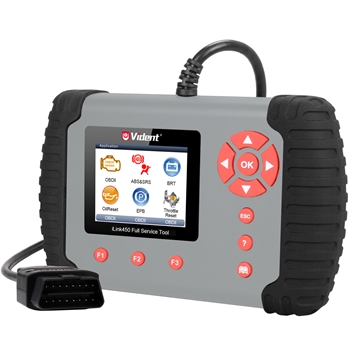

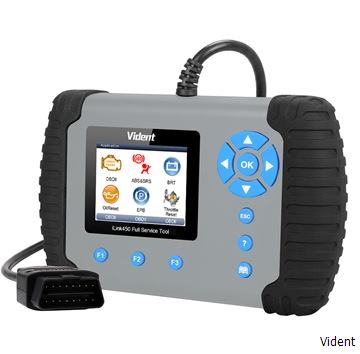

iLink450 Full Service Tool is specially designed for professional technicians and body shops to service individual specialized systems. The functions include EPB, Oil Service, ABS&SRS reset, Battery Configuration, Steering Angle Sensor Calibration, DPF regeneration and Throttle body alignment .
| Display: 2.8” Backlit, 320X240 TFT color screen | |||
| Operating Temperature: 0 to 60°C (32 to 140°F) | |||
| Storage Temperature: -20 to 70°C (-4 to 158°F) | |||
| Power: 8 to 18 V provided via vehicle | |||
| Supported Protocols: J1859-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), and CAN (Control Area Network ISO 11898) | |||
| Tool Dimensions: 194*117*47mm (L*W*H) | |||
| Color Box: 220*165*85mm (L*W*H) | |||
| Weight: 0.9KG | |||
| QTY/CTN: 32SETS | |||
| Weight/CTN: 29KG | |||
| CTN MEAS: 64.2*51.8*36cm |
| iLink450 Scan Tool | |||
| User’s Guide | |||
| Memory Card | |||
| Password Paper | |||
| Leather Carrying Pouch |
| Name | Download |
| Software Update Client iScanzilla Installer |
|
| iLink&iAuto Software Update and Printing Guide.pdf |
|
| iLink Series Scan Tool User Manual.pdf |
|
